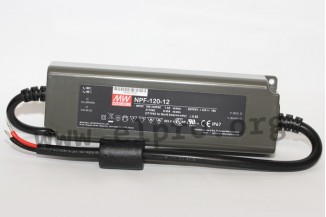

Mean Well LED driver series NPF-120

LED drivers in a plastic housing (IP67) with a fixed output voltage, 120W and a low no-load power. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: NPF-120-12, NPF-120-15, NPF-120-20, NPF-120-24, NPF-120-30, NPF-120-36, NPF-120-42, NPF-120-48 and NPF-120-54.

single output
output: 120 to 124,2W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 60A
no-load power: <0,15W
withstand voltage I/P-O/P: 3750V AC
operating temperature: -40 to +90°C
dimensions: 191x63x37,5mm
weight: 970g
