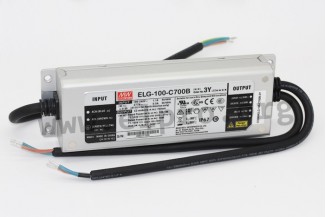

Mean Well LED power supply series ELG-100-C

Switching power supplies in a metal case (IP67) with 100W, a protective conductor PE, a constant current and a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer). These SELV compliant devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They are suitable for LED lightning applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 and a 6kV surge immunity level. We offer the following types of this Mean Well series: ELG-100-C350B-3Y, ELG-100-C500B-3Y, ELG-100-C700B-3Y, ELG-100-C1050B-3Y and ELG-100-C1400B-3Y.

  • single output
  • output: 99,75 to 100,8W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 850g
