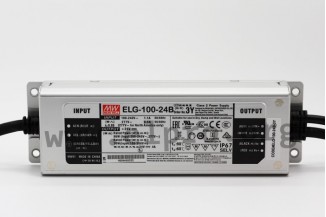

Mean Well LED driver series ELG-100

LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer), a protective earth conductor PE and 100W. These SELV compliant devices are protected against overloa...

Mean Well LED driver series ELG-100

LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer), a protective earth conductor PE and 100W. These SELV compliant devices are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature and are suitable for LED lighting applications. They have a built-in active PFC function and a built-in potentiometer for adjusting the output voltage / current limitation as well as comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. We offer the following types of this Mean Well series: ELG-100-24B-3Y, ELG-100-36B-3Y, ELG-100-42B-3Y, ELG-100-48B-3Y and ELG-100-54B-3Y.

  • single output
  • output: 95,76 to 96,12W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 199x63x35,5mm
  • weight: 850g
> More
Data Sheet
Showing 1 - 6 of 6 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    ELG-100-24B-3W
    32,60 €
    106466 ELG-100-24B-3W ELG-100-24B-3W
    32,60 €
    Stock: 2
  • Mean Well
    ELG-100-24B-3Y, Mean Well LED switching power supplies, 100W, IP67, dimmable, with protective earth PE, ELG-100 series
    29,59 €
    109229 ELG-100-24B-3Y ELG-100-24B-3Y
    29,59 €
    Quantity Unit price
    50 + 27,69 €
    Stock: 358
  • Mean Well
    ELG-100-36B-3Y, Mean Well LED switching power supplies, 100W, IP67, dimmable, with protective earth PE, ELG-100 series
    33,29 €
    109232 ELG-100-36B-3Y ELG-100-36B-3Y
    33,29 €
    Quantity Unit price
    50 + 30,99 €
    Stock: 7
  • Mean Well
    ELG-100-42B-3Y, Mean Well LED switching power supplies, 100W, IP67, dimmable, with protective earth PE, ELG-100 series
    33,29 €
    109234 ELG-100-42B-3Y ELG-100-42B-3Y
    33,29 €
    Quantity Unit price
    50 + 30,99 €
    Stock: 63
  • Mean Well
    ELG-100-48B-3Y, Mean Well LED switching power supplies, 100W, IP67, dimmable, with protective earth PE, ELG-100 series
    33,29 €
    109236 ELG-100-48B-3Y ELG-100-48B-3Y
    33,29 €
    Quantity Unit price
    50 + 30,99 €
    Stock: 36
  • Mean Well
    ELG-100-54B-3Y, Mean Well LED switching power supplies, 100W, IP67, dimmable, with protective earth PE, ELG-100 series
    34,09 €
    109238 ELG-100-54B-3Y ELG-100-54B-3Y
    34,09 €
    Quantity Unit price
    50 + 32,89 €
    Stock: 30
Showing 1 - 6 of 6 products
