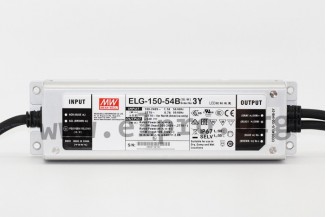

Mean Well LED driver series ELG-150

LED drivers in a metal housing (IP67) with a constant voltage, a protective earth conductor PE, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) and a constant current. These devices are suitab...

Mean Well LED driver series ELG-150

LED drivers in a metal housing (IP67) with a constant voltage, a protective earth conductor PE, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) and a constant current. These devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: ELG-150-12B-3Y, ELG-150-24B-3Y, ELG-150-36B-3Y, ELG-150-42B-3Y, ELG-150-48B-3Y and ELG-150-54B-3Y.

  • single output
  • output: 120 to 151,2W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 219x63x35,5mm
  • weight: 950g
> More
Data Sheet
Showing 1 - 6 of 6 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    Mean Well ELG-150 series
    31,89 €
    109241 ELG-150-12B-3Y ELG-150-12B-3Y
    31,89 €
    Stock: 5
  • Mean Well
    Mean Well ELG-150 series
    30,59 €
    109245 ELG-150-24B-3Y ELG-150-24B-3Y
    30,59 €
    Quantity Unit price
    50 + 28,69 €
    Stock: 640
  • Mean Well
    Mean Well ELG-150 series
    34,39 €
    109248 ELG-150-36B-3Y ELG-150-36B-3Y
    34,39 €
    Quantity Unit price
    50 + 33,19 €
    Stock: 89
  • Mean Well
    Mean Well ELG-150 series
    36,49 €
    109251 ELG-150-42B-3Y ELG-150-42B-3Y
    36,49 €
    Quantity Unit price
    50 + 35,29 €
    Stock: 14
  • Mean Well
    Mean Well ELG-150 series
    34,39 €
    109254 ELG-150-48B-3Y ELG-150-48B-3Y
    34,39 €
    Quantity Unit price
    50 + 33,19 €
    Stock: 78
  • Mean Well
    ELG-150-54B-3Y
    34,39 €
    109257 ELG-150-54B-3Y ELG-150-54B-3Y
    34,39 €
    Quantity Unit price
    50 + 33,19 €
    Stock: 90
Showing 1 - 6 of 6 products
