LED power supply ELG-75-C_B-3Y by Meanwell

These switching power supplies in metal enclosure and with universal input are destined for LED and illumination applications in indoor and outdoor areas (IP67). The devices have a protective earth PE (co...

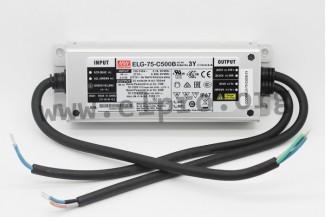

LED power supply ELG-75-C_B-3Y by Meanwell

These switching power supplies in metal enclosure and with universal input are destined for LED and illumination applications in indoor and outdoor areas (IP67). The devices have a protective earth PE (connection cable worldwide certified). They are dimmable, meet 6kV surge immunity level and are protected against short circuit, overvoltage and overload by current limiting (hiccup, auto recovery). Constant current is adjustable (0 to 10V DC, PWM). We offer the following types by manufacturer Mean Well: ELG-75-C350B-3Y, ELG-75-C500B-3Y, ELG-75-C700B-3Y, ELG-75-C1050B-3Y and ELG-75-C1400B-3Y.

• output: 75 W
• input voltage: 180 to 305 V AC (47 to 63Hz), 254 to 431V DC
• maximal input inrush current: 50A
• I/P-O/P, withstand voltage: 3750V AC
• I/P-FG, withstand voltage: 2000V AC
• O/P-FG, withstand voltage: 1500V AC
• operating temperature: -40 to +85 °C
• by Mean Well
• weight: 700 g

> More
