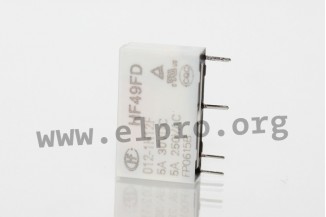

Hongfa PCB relays, 5A, 1 normally open contact, HF49FD series

• SPST-NO
• rated current: 5 A
* miniature power relay
• housing: 20x5x12.5 mm
* slim housing
* 3000 V AC surge withstand beweeen coil and contact
* high sensitivity, 120 mW
* min. 3.5 mm creepage/clearance distance
* reinforce insulation, meets ...

• SPST-NO
• rated current: 5 A
* miniature power relay
• housing: 20x5x12.5 mm
* slim housing
* 3000 V AC surge withstand beweeen coil and contact
* high sensitivity, 120 mW
* min. 3.5 mm creepage/clearance distance
* reinforce insulation, meets IEC61131-2
• contact material: AgNi
• max. switching voltage: 30 V DC, 250 V AC
* 1250 VA / 150 W max. switching power
* 10/5 ms max. operate/release time
• testing voltage coil/contact ( 1 min.): 3000 V AC
• testing voltage open contacts ( 1 min.): 1000 V AC
• mechanical lifetime, min.: 2x107 operations
• electrical lifetime, min.: 5x104 operations
• operating temperature: -40 to +85 °C
• low weight: approx. 3 g
