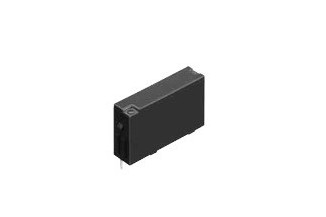

PCB relays series PA-N / APAN3

They have a slim design with 5mm depth and a high isolation (min. 5.35mm between coil and contact). The impulse withstand voltage between contact and coil is 6000V.

* contact: SPST
* contact material: AgNi
* max. switching current: 5A
* max. switching voltage: 250V AC
* max. switching power: 1.250VA
* max. operate/release time: 10/5ms
* testing voltage
coil/contact (1 min.): 1.000V AC
open contacts (1 min.): 3.000V AC
* min. lifetime
mechanical: 2x107 operations
electrical: 5x104 operations
* operating temperature: -40 to +90°C
* housing: 20x5x12.5 mm
* weight: 3g

> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Panasonic
    APAN 314 H
    5,39 €
    107610 APAN 314 H APAN314H APAN314H
    5,39 €
    Stock: 75
  • Panasonic
    APAN 3105
    2,09 €
    107611 APAN 3105 APAN3105 APAN3105
    2,09 €
    Stock: 0
  • Panasonic
    APAN 3112
    2,09 €
    107612 APAN 3112 APAN3112 APAN3112
    2,09 €
    Stock: 0
  • Panasonic
    APAN 3124
    1,47 €
    107613 APAN 3124 APAN3124 APAN3124
    1,47 €
    Stock: 483
Showing 1 - 4 of 4 products
