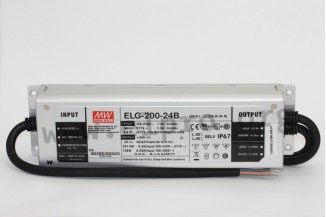

Mean Well LED driver series ELG-200

LED drivers in a metal housing (IP67) with a constant voltage, a constant current, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) and a protective earth conductor PE. These devices are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit and comply with 6kV surge immunity level, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-200-12B-3Y, ELG-200-24B-3Y, ELG-200-36B-3Y, ELG-200-42B-3Y, ELG-200-48B-3Y and ELG-200-54B-3Y.

single output
output: 192 to 201,6W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 60A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: 244x71x37,5mm
weight: 1220g
