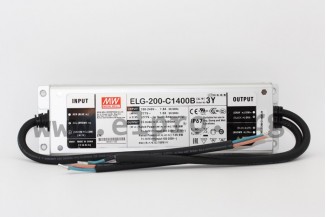

Mean Well LED driver series ELG-200-C

LED drivers in a metal case (IP67) with a fixed constant current, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) and a protective earth conductor PE (three wire primary cable). These SELV c...

Mean Well LED driver series ELG-200-C

LED drivers in a metal case (IP67) with a fixed constant current, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) and a protective earth conductor PE (three wire primary cable). These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 and a 6kV surge immunity level and are suitable for LED lightning applications. They are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-200-C700B-3Y, ELG-200-C1050B-3Y, ELG-200-C1400B-3Y, ELG-200-C1750B-3Y and ELG-200-C2100B-3Y.

  • single output
  • output: 198,8 to 201,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1000V AC
  • operating temperature: -40 bis +85°C
  • weight: 1220g
> More
Data Sheet
Showing 1 - 5 of 5 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    ELG-200-C700B-3Y,  Mean Well LED switching power supplies, 200W, IP67, constant current, dimmable, with protective earth PE, ELG
    41,99 €
    123326 ELG-200-C700B-3Y ELG-200-C700B-3Y
    41,99 €
    Quantity Unit price
    50 + 40,59 €
    Stock: 48
  • Mean Well
    ELG-200-C1050B-3Y,  Mean Well LED switching power supplies, 200W, IP67, constant current, dimmable, with protective earth PE, EL
    41,99 €
    123329 ELG-200-C1050B-3Y ELG-200-C1050B-3Y
    41,99 €
    Quantity Unit price
    50 + 40,59 €
    Stock: 120
  • Mean Well
    ELG-200-C1400B-3Y
    44,59 €
    109318 ELG-200-C1400B-3Y ELG-200-C1400B-3Y
    44,59 €
    Quantity Unit price
    50 + 43,09 €
    Stock: 222
  • Mean Well
    ELG-200-C1750B-3Y
    44,59 €
    109320 ELG-200-C1750B-3Y ELG-200-C1750B-3Y
    44,59 €
    Quantity Unit price
    50 + 43,09 €
    Stock: 10
  • Mean Well
    ELG-200-C2100B-3Y
    44,59 €
    109322 ELG-200-C2100B-3Y ELG-200-C2100B-3Y
    44,59 €
    Quantity Unit price
    50 + 43,09 €
    Stock: 6
Showing 1 - 5 of 5 products
