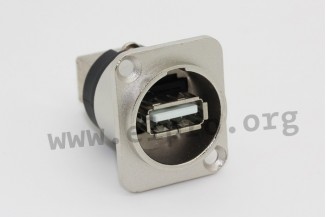

USB 2.0 adapter by Cliff

These adapters in robust zinc/nickel metal XLR housing are connecting A to B (CP30110) or B to A (CP30111). They are suited for 23,6mm Ø panel cutouts. The adapters can be mounted on the back or front side of the panel. Th...

USB 2.0 adapter by Cliff

These adapters in robust zinc/nickel metal XLR housing are connecting A to B (CP30110) or B to A (CP30111). They are suited for 23,6mm Ø panel cutouts. The adapters can be mounted on the back or front side of the panel. They are suitable for professional audio, broadcast and lighting applications. We are offering the following adapters by manufacturer Cliff: CP30110 and CP30111.

* insulation: PTB (UL94-0)
* contact material: brass
* contact surface: Au-plated
* contact resistance, max: 30mΩ
* insulation resistance, min.: 1000MΩ
* rated current: 1.5A
* rated voltage: 500V
* dielectric strength (1min.): 500VRMS
* temperature range: 0 to +50°C
* short term (10s): +260°C

> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Cliff
    CP30110
    6,99 €
    108830 CP30110 CP30110
    6,99 €
    Stock: 20
  • Cliff
    CP30111
    5,99 €
    108831 CP30111 CP30111
    5,99 €
    Stock: 177
Showing 1 - 2 of 2 products
