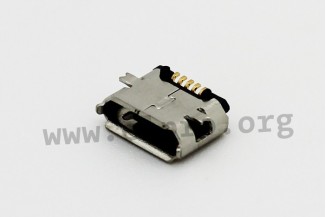

Micro USB connectors by Garry

These micro USB sockets for SMD mounting are available as 712-1-S-BS0: Micro USB socket type B and 712-2-S-BS0: Micro USB socket type AB. We are offering the following types by Garry: 712-1-S-BS0: Micro USB socket typ...

Micro USB connectors by Garry

These micro USB sockets for SMD mounting are available as 712-1-S-BS0: Micro USB socket type B and 712-2-S-BS0: Micro USB socket type AB. We are offering the following types by Garry: 712-1-S-BS0: Micro USB socket type B and 712-2-S-BS0: Micro USB socket type AB.

insulation shell: High temp. Thermoplastic UL94V-0
Contact Material: Phosphor Bronze
Contact Surface: Au-plated
Rated Current: 1,0A1) or 1,8A/0,5A2)
Rated Voltage: 30VRMS/V DC
Dielectric Strength (1Min.): 100VRMS
Temperature Range: -30 to +80°C
Short Term (10s): +260°C

1) für Pin 1 bis 5 oder 2) 1,8A für Pin 1 und 5 und 0,5A für Pin 2 bis 4

> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • MPE Garry
    712-1-S-BS0
    0,799 €
    108832 712-1-S-BS0 712-1-S-BS0
    0,799 €

    More
    Stock: 1100
  • MPE Garry
    712-2-S-BS0
    0,24 €
    108833 712-2-S-BS0 712-2-S-BS0
    0,24 €

    More
    Stock: 7
