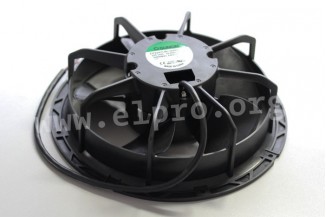

AC axial fan 230V AC, series CF by Sunon

AC fans with a patented one-phase single coil DC brushless motor design. The frame and impeller of these fans are made of thermoplastic PBT (UL94V-0). These fans have ball bearing systems, dimensions of &O...

AC axial fan 230V AC, series CF by Sunon

AC fans with a patented one-phase single coil DC brushless motor design. The frame and impeller of these fans are made of thermoplastic PBT (UL94V-0). These fans have ball bearing systems, dimensions of Ø200.6x77.7mm, and connection type UL SVT 18AWGx3C, 105°C, 300V. They have different protection classes: IP68 for the CF 2207 LBL-000U-HE9 model and IP55 for the CF 2207 LBL-000U-HB9 model. Their rated voltage is between 220 to 240V AC while their operating voltage ranges from 185 to 250V AC. We offer the following types of this Sunon series: CF 2207 LBL-000U-HE9 and CF 2207 LBL-000U-HB9

> More
Showing 1 - 2 of 2 products
