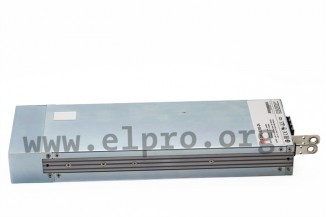

Mean Well power supply series DPU-3200

Switching power supplies in an enclosed housing with 3200W, screw terminals, a fan and a universal input. These devices have a built-in active PFC function and are protected against overload, overtemperature,...

Mean Well power supply series DPU-3200

Switching power supplies in an enclosed housing with 3200W, screw terminals, a fan and a universal input. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 16.000W (4+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. The output voltage as well as the constant current level are programmable. We offer the following types of this Mean Well series: DPU-3200-24 and DPU-3200-48.

  • single output
  • output: 3192 to 3216W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 55A
  • leakage current: <2mA
  • output voltage adjustment: ±1%
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 2760g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    DPU-3200-24
    570,49 €
    111888 DPU-3200-24 DPU-3200-24
    570,49 €

    More
    Stock: 45
  • Mean Well
    Mean Well DPU-3200 series
    570,49 €
    111889 DPU-3200-48 DPU-3200-48
    570,49 €

    More
    Stock: 74
