Mean Well LED power supply series HBG-100

Dimmable LED power supplies (1 to 10V DC, PWM, potentiometer) with universal input in a fully potted aluminium enclosure (circular shape, IP67). These devices with a built-in active PFC function are suitab...

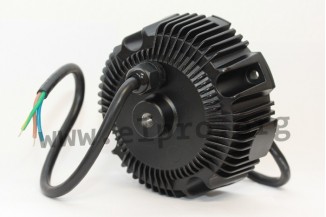

Mean Well LED power supply series HBG-100

Dimmable LED power supplies (1 to 10V DC, PWM, potentiometer) with universal input in a fully potted aluminium enclosure (circular shape, IP67). These devices with a built-in active PFC function are suitable for LED lighting as well as moving sign applications (high bay/low bay lighting, stage light) and are protected against short circuit, overvoltage and overload (current limiting, auto recovery). The following types of this Mean Well series are available in our shop: HBG-100-24B, HBG-100-36B, HBG-100-48B and HBG-100-60B.

  • single output
  • output: 96 to 97,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • weight: 1180g

Matching LED heatsinks for this Mean Well series can be found here

> More
Download

Showing 1 - 4 of 4 items
  • article stock price volume discount
  • MeanWell
    Mean Well HBG-100 series
    37,70 €
    111777 HBG-100-24B HBG-100-24B
    37,70 €
    20 pcs. / 33,30 €
    stock: 11
  • MeanWell
    Mean Well HBG-100 series
    37,70 €
    111779 HBG-100-36B HBG-100-36B
    37,70 €
    20 pcs. / 33,30 €
    stock: 11
  • MeanWell
    Mean Well HBG-100 series
    37,70 €
    111781 HBG-100-48B HBG-100-48B
    37,70 €
    20 pcs. / 33,30 €
    stock: 1
  • MeanWell
    Mean Well HBG-100 series
    37,70 €
    111783 HBG-100-60B HBG-100-60B
    37,70 €
    20 pcs. / 33,30 €
    stock: 4
Showing 1 - 4 of 4 items
