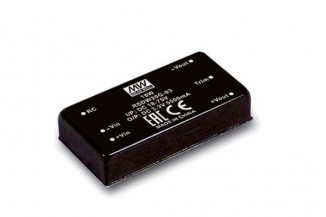

Mean Well DC/DC converter series RSDW20

DC/DC converters in a 2"x1" DIL housing with 20W, a remote ON/OFF control and an input voltage ratio of 4:1. These devices require no minimum load, are suitable for rail industry applications and are protected against overload, overvoltage, input undervoltage as well as short circuit (continuous). They are suitable for PCB mounting and comply with EN50155, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RSDW20F-03, RSDW20F-05, RSDW20F-12, RSDW20F-15, RSDW20G-03, RSDW20G-05, RSDW20G-12, RSDW20G-15, RSDW20H-05, RSDW20H-12 and RSDW20H-15.

single output
output: 20W
output voltage tolerance: ±1,5%
withstand voltage: 1500 (RSDW20F_/RSDW20G_) resp. 3000V DC (RSDW20H_)
operating temperature: -40 to +85°C
weight: 35g

> More

Data Sheet
