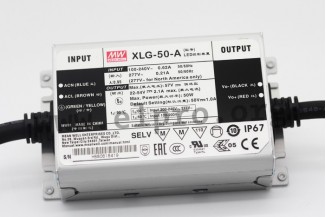

Mean Well LED power supply series XLG-50

LED power supplies with a built-in active PFC function, a wide input range, a surge immunity level of 6kV and constant power. These SELV compliant devices in a metal housing (IP67) are suited for LED lighti...

Mean Well LED power supply series XLG-50

LED power supplies with a built-in active PFC function, a wide input range, a surge immunity level of 6kV and constant power. These SELV compliant devices in a metal housing (IP67) are suited for LED lighting applications, have a low no load power consumption and are protected against overload (constant current limiting, auto recovery), short circuit, overtemperature as well as overvoltage. They are in compliance with the safety standards EN61347-1, EN61347-2-13, EN62384 (among others) and with the following EMC standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 etc. The types XLG-50-A and XLG-50-AB of this Mean Well series are available in our web shop. The current of both types is adjustable via a built-in potentiometer. In addition, the type XLG-50-AB has a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer).

  • single output
  • output: 50W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 410g
> More
Download

Showing 1 - 2 of 2 items
  • article stock price volume discount
  • Mean Well
    XLG-50-A
    17,80 €
    112741 XLG-50-A XLG-50-A
    17,80 €
    20 pcs. / 15,80 €
    stock: 223
  • Mean Well
    Mean Well XLG-50 series
    20,40 €
    112742 XLG-50-AB XLG-50-AB
    20,40 €
    20 pcs. / 18,00 €
    stock: 284
