Mean Well switching power supply series UHP-750

Power supplies in an enclosure (U-Bracket) with a slim and low profile (41mm height) for an operating altitude of up to 5000m. These devices with a wide input range and a built-in active PFC function...

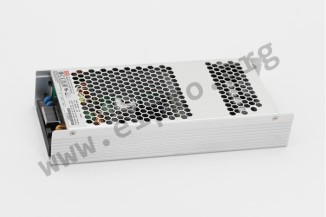

Mean Well switching power supply series UHP-750

Power supplies in an enclosure (U-Bracket) with a slim and low profile (41mm height) for an operating altitude of up to 5000m. These devices with a wide input range and a built-in active PFC function are protected against overtemperature, overvoltage, overload and short circuit. They have a power on LED indicator, a fanless design (cooling by free air convection) and are compliant to EN 60335-1 and EN 61558-1. We offer the types UHP-750-12, UHP-750-24, UHP-750-36 and UHP-750-48.

  • single output
  • power: 750W
  • input voltage: 90 to 264V AC (47 to 63Hz) 127 to 370V DC
  • maximal input inrush current: 40A
  • maximal leakage current: 0,75mA
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 1400g
> More
Download

Showing 1 - 4 of 4 items
  • article stock price volume discount
  • MeanWell
    Mean Well UHP-750 series
    166,30 €
    113331 UHP-750-12 UHP-750-12
    166,30 €
    20 pcs. / 147,00 €
    stock: 78
  • MeanWell
    UHP-750-24
    166,30 €
    113332 UHP-750-24 UHP-750-24
    166,30 €
    20 pcs. / 147,00 €
    stock: 122
  • MeanWell
    Mean Well UHP-750 series
    166,30 €
    113333 UHP-750-36 UHP-750-36
    166,30 €
    20 pcs. / 147,00 €
    stock: 47
  • MeanWell
    Mean Well UHP-750 series
    166,30 €
    113334 UHP-750-48 UHP-750-48
    166,30 €
    20 pcs. / 147,00 €
    stock: 53
