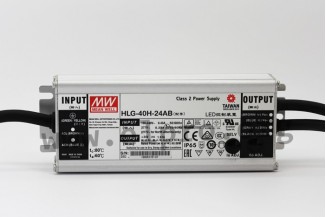

Mean Well LED power supply series HLG-40H

Switching power supplies in a metal case (IP65) with a constant current, a constant voltage and a built-in PFC function. The output voltage and current are adjustable via a built-in potentiometer. Furtherm...

Mean Well LED power supply series HLG-40H

Switching power supplies in a metal case (IP65) with a constant current, a constant voltage and a built-in PFC function. The output voltage and current are adjustable via a built-in potentiometer. Furthermore, these devices have a wide input range and a 3 in 1 dimming function (1 to 10V DC, potentiometer or PWM). These LED power supplies are SELV compliant, suitable for LED lighting applications and are protected against short-circuit, overcurrent, overvoltage, overtemperature and overload through constant current limiting (auto recovery). Also, they are in accordance with EMC standards EN 55015, EN 61000-3-2 Class C, EN 61000-3-3 and EN 61547 as well with safety standards EN 61347-1 and EN 61347-2-13. We offer the types HLG-40H-12AB and HLG-40H-24AB of this series.

  • single output
  • output: 40W
  • weight: 1120g
  • operating temperature: -40 to +70°C
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A/230V AC
  • over Current Protection: 95 to 106%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
> More
Download

Showing 1 - 2 of 2 items
  • article stock price volume discount
  • Mean Well
    Mean Well HLG-40H series
    28,00 €
    113212 HLG-40H-12AB HLG-40H-12AB
    28,00 €
    20 pcs. / 24,80 €
    stock: 81
  • Mean Well
    HLG-40H-24AB
    28,00 €
    113213 HLG-40H-24AB HLG-40H-24AB
    28,00 €
    20 pcs. / 24,80 €
    stock: 62
Showing 1 - 2 of 2 items
