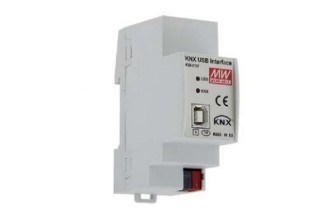

Mean Well KNX-USB interface module series KSI-01U

KNX-USB interface modules with an enclosure (IP20) for home automation. These modules can be connected to a PC via a USB-cable, granting access to all connected devices in the KNX-Bus system. There...

Mean Well KNX-USB interface module series KSI-01U

KNX-USB interface modules with an enclosure (IP20) for home automation. These modules can be connected to a PC via a USB-cable, granting access to all connected devices in the KNX-Bus system. Therefore, functions like commissioning, addressing, diagnosing, parametrization, protocolling and visualization are accessible through standard software like ETS and EITT on a PC. The connection between the KNX-Bus and a module is galvanically isolated and the message size of the ADPUs can be up to 220 bytes. They also have diagnostic operations and don't require an additional external power supply. We offer the type KSI-01U of this Mean Well series.

  • input: USB type B
  • output: KNX protocol
  • power supply: 21 to 30V DC (KNX TP Bus) / 5V DC (USB-Bus)
  • maximal current consumption: 5mA (KNX TP Bus) / 20mA (USB-Bus)
  • operating temperature: -5 to +45°C
  • weight: 60g
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Mean Well
    KSI-01U
    133,99 €
    113266 KSI-01U KSI-01U
    133,99 €
    Quantity Unit price
    50 + 129,59 €

    More
    Stock: 32
