Mean Well LED power supply series HLG-150H

LED switching power supplies ("AB" version) featuring an adjustable constant voltage and current (dual mode) as well as a 3 in 1 dimming function (PWM, potentiometer or 1 to 10V DC). These devices in a me...

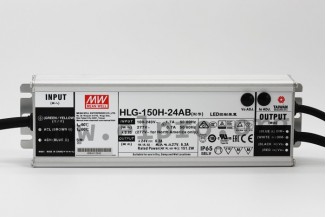

Mean Well LED power supply series HLG-150H

LED switching power supplies ("AB" version) featuring an adjustable constant voltage and current (dual mode) as well as a 3 in 1 dimming function (PWM, potentiometer or 1 to 10V DC). These devices in a metal housing operate with 90 to 305V AC (47 to 63Hz) or 127 to 431V DC generating a rated voltage of 12 to 54V. Furthermore, they have a wide input range, a built-in PFC function and are IP65 certified and therefore suited for indoor and outdoor LED lighting applications. These fanless devices are cooled through free air convection and have a high efficiency of up to 94%. They are protected against short-circuit, overvoltage, overcurrent, overtemperature and overload through current limiting (auto-recovery) and are in compliance with the safety standards EN61347-1 and EN61347-2-13 as well as the EMC standards EN55015, EN61000-3-2 Class C, EN61000-3-3 and EN61547. We offer the following types of this series: HLG-150H-12AB and HLG-150H-24AB.

  • single output
  • output: 150W
  • SELV compliant
  • input voltage: 127 to 431V DC, 90 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 65A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • weight: 1150g
  • operating temperature: -40 to +90°C
> More
Download

Showing 1 - 2 of 2 items
  • article stock price volume discount
  • MeanWell
    Mean Well HLG-150H series
    42,90 €
    113235 HLG-150H-12AB HLG-150H-12AB
    42,90 €
    20 pcs. / 38,00 €
    stock: 91
  • MeanWell
    HLG-150H-24AB
    42,90 €
    113236 HLG-150H-24AB HLG-150H-24AB
    42,90 €
    20 pcs. / 38,00 €
    stock: 177
Showing 1 - 2 of 2 items
