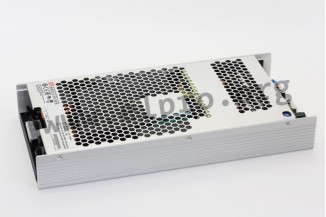

Mean Well power supply series UHP-1500

Switching power supplies in a metal case (U-bracket) with a slim/low profile (41mm) and a universal input. These devices are contact-cooled and have a fanless design (free air convection). They have a built-i...

Mean Well power supply series UHP-1500

Switching power supplies in a metal case (U-bracket) with a slim/low profile (41mm) and a universal input. These devices are contact-cooled and have a fanless design (free air convection). They have a built-in PFC function, are protected against short circuit, overload, overvoltage as well as overtemperature and comply with EN55032 class B as well as EN55032 class A. Both the output voltage and current are programmable. The UHP-1500 series has 5G anti-vibration capability. We offer the following types of this Mean Well series: UHP-1500-24 and UHP-1500-48.

  • single output
  • 1U low profile (41mm)
  • output: 1500 to 1512W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 370V DC
  • maximal input inrush current: 60A
  • maximal leakage current: 0,75mA
  • overload protection: 105 to 120%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • dimensions: 290x140x41mm
  • weight: 2510g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    UHP-1500-24, Mean Well switching power supplies, 1500W, U-bracket, PFC, UHP-1500 series
    317,19 €
    114306 UHP-1500-24 UHP-1500-24
    317,19 €
    Quantity Unit price
    50 + 308,99 €

    More
    Stock: 15
  • Mean Well
    UHP-1500-48, Mean Well switching power supplies, 1500W, U-bracket, PFC, UHP-1500 series
    339,79 €
    114307 UHP-1500-48 UHP-1500-48
    339,79 €

    More
    Stock: 30
Showing 1 - 2 of 2 products
