Mean Well LED driver series XLG-240

LED drivers in a metal housing (IP67) with 240W, a constant voltage / current, a low no-load power consumption (<0,5W), a SELV output (except for XLG_-L_/XLG_-M_) and a potentiometer for adjusting the current...

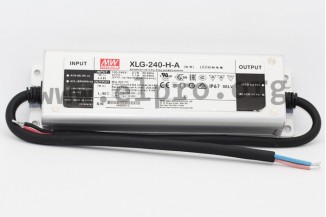

Mean Well LED driver series XLG-240

LED drivers in a metal housing (IP67) with 240W, a constant voltage / current, a low no-load power consumption (<0,5W), a SELV output (except for XLG_-L_/XLG_-M_) and a potentiometer for adjusting the current limit. These devices have a built-in active PFC function and are protected against overload (auto recovery), overcurrent, overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: XLG-240-L-A, XLG-240-M-A and XLG-240-H-A.

  • single output
  • output: 239,4 to 240W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 75A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 219x63x35,5mm
  • weight: 1000g
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    XLG-240-L-A, Mean Well LED drivers, 240W, IP67, constant power, XLG-240 series
    32,79 €
    113429 XLG-240-L-A XLG-240-L-A
    32,79 €
    Quantity Unit price
    50 + 31,69 €
    Stock: 39
  • Mean Well
    XLG-240-M-A, Mean Well LED drivers, 240W, IP67, constant power, XLG-240 series
    32,79 €
    113431 XLG-240-M-A XLG-240-M-A
    32,79 €
    Quantity Unit price
    50 + 31,69 €
    Stock: 0
  • Mean Well
    XLG-240-H-A, Mean Well LED drivers, 240W, IP67, constant power, XLG-240 series
    32,79 €
    113427 XLG-240-H-A XLG-240-H-A
    32,79 €
    Quantity Unit price
    50 + 31,69 €
    Stock: 0
Showing 1 - 3 of 3 products
