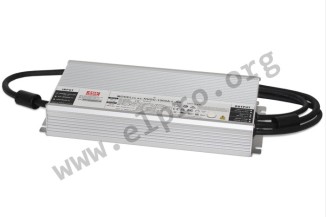

Mean Well LED driver series HVGC-1000

LED drivers in a metal housing (IP67) with a surge immunity level of 4kV/8kV, a 3 in 1 dimming function, a constant power and a built-in potentiometer for adjusting the current limitation. These devices are pr...

Mean Well LED driver series HVGC-1000

LED drivers in a metal housing (IP67) with a surge immunity level of 4kV/8kV, a 3 in 1 dimming function, a constant power and a built-in potentiometer for adjusting the current limitation. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61000-3-2 Class as well as EN55015. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HVGC-1000A-L-AB, HVGC-1000A-M-AB and HVGC-1000A-H-AB.

  • single output
  • output: 1003,2 to 1008W
  • input voltage: 180 to 528V AC (47 to 63Hz)
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 310x144x8,5mm
  • weight: 4200g
