Mean Well DIN rail power supply series WDR-60

DIN rail power supplies with a universal input (1- or 2-phase), cooling by free air convection and 60W. These devices can be mounted directly on a DIN rail, have an adjustable DC output voltage and a b...

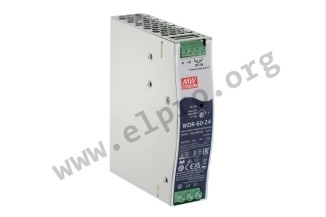

Mean Well DIN rail power supply series WDR-60

DIN rail power supplies with a universal input (1- or 2-phase), cooling by free air convection and 60W. These devices can be mounted directly on a DIN rail, have an adjustable DC output voltage and a built-in DC OK relay contact. They are protected against short circuit, overload, overvoltage (overvoltage category III) and comply with insulation class II as well as EN55032 class B and EN61000-3-2,3. We offer the following types of this Mean Well series: WDR-60-5, WDR-60-12, WDR-60-24 and WDR-60-48.

  • single output
  • output: 50 to 60W
  • input voltage: 180 to 550V AC (47 to 63Hz), 254 to 780V DC
  • maximal input inrush current: 50A
  • maximal leakage current: 2mA
  • output voltage adjustment: +20%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4700V AC
  • withstand voltage I/P-FG: 2500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +85°C
  • weight: 450g
> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    WDR-60-5, Mean Well DIN rail switching power supplies, 60W, 2-phase input, WDR-60 series
    36,49 €
    119242 WDR-60-5 WDR-60-5
    36,49 €
    Quantity Unit price
    50 + 35,29 €
    Stock: 21
  • Mean Well
    WDR-60-12, Mean Well DIN rail switching power supplies, 60W, 2-phase input, WDR-60 series
    33,79 €
    119243 WDR-60-12 WDR-60-12
    33,79 €
    Quantity Unit price
    50 + 32,89 €
    Stock: 217
  • Mean Well
    WDR-60-24, Mean Well DIN rail switching power supplies, 60W, 2-phase input, WDR-60 series
    33,79 €
    119244 WDR-60-24 WDR-60-24
    33,79 €
    Quantity Unit price
    50 + 32,89 €
    Stock: 0
  • Mean Well
    WDR-60-48, Mean Well DIN rail switching power supplies, 60W, 2-phase input, WDR-60 series
    36,49 €
    119245 WDR-60-48 WDR-60-48
    36,49 €
    Quantity Unit price
    50 + 35,29 €
    Stock: 10
Showing 1 - 4 of 4 products
