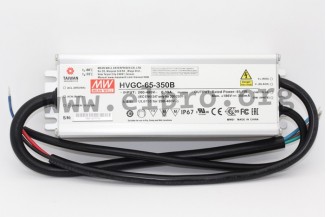

Mean Well LED power supply series HVGC-65_B

Mean Well LED switching power supplies in an aluminium case (IP67) with a constant current, 65W, a wide input range and a high output voltage. These devices are suitable for LED lightning applications an...

Mean Well LED power supply series HVGC-65_B

Mean Well LED switching power supplies in an aluminium case (IP67) with a constant current, 65W, a wide input range and a high output voltage. These devices are suitable for LED lightning applications and are compliant with EN61347-1, EN55015 and EN61000-3-2 class C. They have a built-in active PFC function, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) with an executed control line and are protected against short circuit, overvoltage as well as overload (auto recovery). We offer the following types of this Mean Well series: HVGC-65-350B, HVGC-65-700B and HVGC-65-1050B.

  • single output
  • output: 65W
  • input voltage: 180 bis 528V AC (47 bis 63Hz), 254 bis 747V DC
  • maximal input inrush current: 25A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500 AC
  • operating temperature: -40 to +80°C
  • weight: 770g
  • dimensions: 189x61,5x36,8mm
> More
Download

Showing 1 - 3 of 3 items
  • article stock price volume discount
  • Mean Well
    HVGC-65-350B, Mean Well LED switching power supplies, 65W, IP67, constant current, high voltage, dimmable, HVGC-65 series
    48,00 €
    123089 HVGC-65-350B HVGC-65-350B
    48,00 €
    20 pcs. / 42,50 €
    stock: 9
  • Mean Well
    HVGC-65-700B, Mean Well LED switching power supplies, 65W, IP67, constant current, high voltage, dimmable, HVGC-65 series
    48,00 €
    123094 HVGC-65-700B HVGC-65-700B
    48,00 €
    20 pcs. / 42,50 €
    stock: 9
  • Mean Well
    HVGC-65-1050B, Mean Well LED switching power supplies, 65W, IP67, constant current, high voltage, dimmable, HVGC-65 series
    48,00 €
    123097 HVGC-65-1050B HVGC-65-1050B
    48,00 €
    20 pcs. / 42,50 €
    stock: 7
Showing 1 - 3 of 3 items
