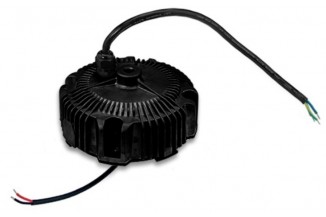

Mean Well LED driver series HBG-160

LED drivers in a circular metal case (IP67) with a constant current (pre-set), 160W and a wide input range. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as...

Mean Well LED driver series HBG-160

LED drivers in a circular metal case (IP67) with a constant current (pre-set), 160W and a wide input range. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-160-24, HBG-160-36, HBG-160-48 and HBG-160-60.

  • single output
  • output: 156 to 158,4W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +85°C
  • weight: 1530g
> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    HBG-160-24, Mean Well LED switching power supplies, 160W, IP67, circular housing, HBG-160 series
    51,89 €
    123269 HBG-160-24 HBG-160-24
    51,89 €
    Quantity Unit price
    50 + 50,19 €
    Stock: 2
  • Mean Well
    HBG-160-36, Mean Well LED switching power supplies, 160W, IP67, circular housing, HBG-160 series
    51,89 €
    123270 HBG-160-36 HBG-160-36
    51,89 €
    Quantity Unit price
    50 + 50,19 €
    Stock: 4
  • Mean Well
    HBG-160-48, Mean Well LED drivers, 160W, IP67, CV and CC mixed mode, circular housing, HBG-160 series
    59,19 €
    244614 HBG-160-48 HBG-160-48
    59,19 €
  • Mean Well
    HBG-160-60, Mean Well LED drivers, 160W, IP67, CV and CC mixed mode, circular housing, HBG-160 series
    59,19 €
    244616 HBG-160-60 HBG-160-60
    59,19 €
Showing 1 - 4 of 4 products
