Mean Well LED driver series HLN-80H

LED drivers in a plastic housing (IP64) with a constant current, 80W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN613...

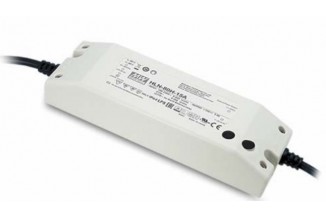

Mean Well LED driver series HLN-80H

LED drivers in a plastic housing (IP64) with a constant current, 80W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-12, EN55015 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. The output current is adjustable through a 3 in 1 dimming function (1 to 10V DC, 10V PWM, resistance). We offer the type HLN-80H-36B of this Mean Well series.

  • single output
  • output: 82,8W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +50°C
  • weight: 500g
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Mean Well
    HLN-80H-36B, Mean Well LED switching power supplies, 80W, IP64, dimmable, HLN-80H series
    44,39 €
    123882 HLN-80H-36B HLN-80H-36B
    44,39 €
    Quantity Unit price
    50 + 42,89 €

    More
    Stock: 11
