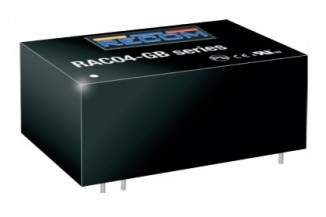

Recom AC/DC converter series RAC04-GB

AC/DC converter modules in a plastic case with 4W and a universal input. These devices are suitable for PCB mounting and have a low no-load power consumption. They are protected against short circuit, overload...

Recom AC/DC converter series RAC04-GB

AC/DC converter modules in a plastic case with 4W and a universal input. These devices are suitable for PCB mounting and have a low no-load power consumption. They are protected against short circuit, overload as well as overvoltage and comply with EN60950-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: RAC04-3.33SGB, RAC04-05SGB, RAC04-12SGB, RAC04-15SGB and RAC04-24SGB.

  • single output
  • output: 4W
  • input voltage: 85 to 305V AC (47 to 65Hz), 120 to 430V DC
  • output voltage tolerance: ±2,5%
  • maximal input inrush current: 20A
  • withstand voltage I/P-O/P: 3000V AC / 1min
  • operating temperature: -40 to +85°C
  • dimensions: 37x24x15mm
  • weight: 20g
> More
Data Sheet
