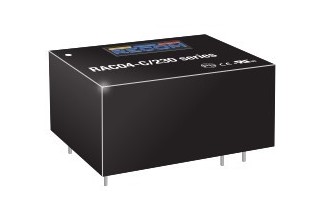

Recom AC/DC converter series RAC04-C/230

AC/DC converter modules in a plastic case (enclosed type) with 4W, a universal input and a low no-load power consumption. These devices are protected against short circuit as well as overvoltage and comply ...

Recom AC/DC converter series RAC04-C/230

AC/DC converter modules in a plastic case (enclosed type) with 4W, a universal input and a low no-load power consumption. These devices are protected against short circuit as well as overvoltage and comply with EN62368-1, EN55032 as well as EN61000-4-2. They are suitable for PCB mounting and available with a single (RAC04-_SC/230) or a dual output (RAC04-_DC/230). We offer the following types of this Recom series: RAC04-05SC/230, RAC04-24SC/230 and RAC04-05DC/230.

  • single or dual output
  • output: 4W
  • input voltage: 80 to 264V AC (47 to 440Hz), 113 to 373V DC
  • output voltage tolerance: ±2%
  • maximal input inrush current: 30A
  • withstand voltage I/P-O/P: 3750V AC / 1min
  • operating temperature: -40 to +80°C
  • dimensions 36,7x27,2x17,1mm
  • weight: 31,5g
> More
Data Sheet
