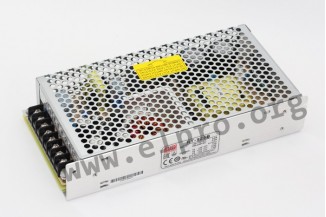

Mean Well power supply series RT-125

Switching power supplies in an enclosed housing with 125W, screw terminals, a universal input and a triple output. These devices are using long life 105°C electrolytic capacitors and are protected against short circuit, overvoltage as well as overload (auto recovery). They comply with UL62368-1, EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RT-125A, RT-125B, RT-125C and RT-125D.

triple output
output: 131 to 136W
input voltage: 88 to 132V AC (47 to 63Hz), 176 to 264V DC
maximal input inrush current: 50A
maximal leakage current: <2mA
output voltage adjustment: 4,75 to 5,5V
overload protection: 110 to 150%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -25 to +70°C
weight: 700g
