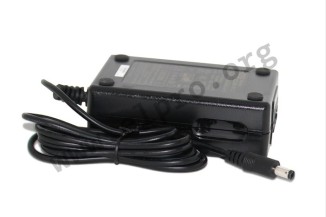

Mean Well desktop battery charger series GC30B

2-stage desktop charger with 30W, protection class II and a universal input. These devices are suitable for both lead-acid and li-ion batteries and comply with UL60950-1, EN60950-1 as well as EN55014-1 class B. They have a low no-load power consumption (<1W) and are protected against short circuit, overload as well as overvoltage. We offer the following types of this Mean Well series: GC30B-0P1J, GC30B-2P1J, GC30B-4P1J, GC30B-5P1J, GC30B-6P1J and GC30B-11P1J.

output: 16,8 to 30W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 40A
maximal leakage current: 0,25mA
operating temperature: 0 to +50°C
weight: 309g

> More

Data Sheet
