Mean Well LED driver series HLG-480H-C

LED drivers in a metal case (IP65) with a constant current, 480W, a universal input and a typical lifetime of more than 62.000 hours. These devices are suitable for LED lighting applications, are protected ag...

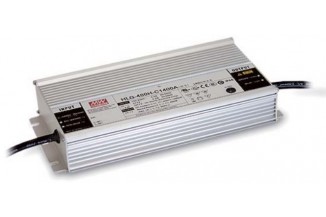

Mean Well LED driver series HLG-480H-C

LED drivers in a metal case (IP65) with a constant current, 480W, a universal input and a typical lifetime of more than 62.000 hours. These devices are suitable for LED lighting applications, are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature and have a built-in potentiometer for adjusting the output current as well as a built-in active PFC function. We offer the following types of this Mean Well series: HLG-480H-C1400AB, HLG-480H-C1750AB, HLG-480H-C2100AB, HLG-480H-C2800AB and HLG-480H-C3500AB.

  • single output
  • output: 479 to 481W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 35A
  • maximal leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 bis +90°C
  • weight: 2800g
> More
Data Sheet
