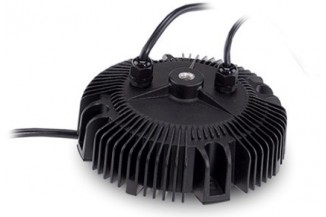

Mean Well LED driver series HBGC-300

LED drivers in a round shaped metal case (IP67) with a constant power, 300W and a universal input. These devices are suitable for LED lighting applications, are protected against short circuit, overcurrent, overvoltage, overload (auto recovery) as well as overtemperature and have a built-in active PFC function. They comply with EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and have a built-in potentiometer for adjusting the output current. We offer the following types of this Mean Well series: HBGC-300-L-ADA, HBGC-300-M-ADA and HBGC-300-H-ADA.

single output
output: 301,6W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 45A
maximal leakage current: <0,75mA
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 bis +80°C
dimensions: Ø191,5x69mm
weight: 2200g
