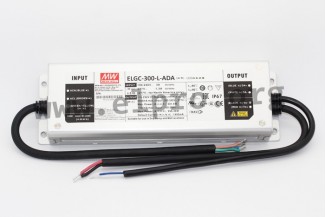

Mean Well LED driver series ELGC-300

LED drivers in a metal case (IP67) with a DALI 2.0 interface, a 6kV surge immunity level, a wide input range and 300W. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELGC-300-L-ADA, ELGC-300-M-ADA and ELGC-300-H-ADA.

single output
output: 301,6W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 45A
maximal leakage current: <0,75mA
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +85°C
weight: 1450g
