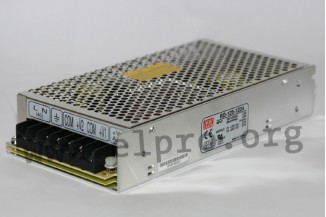

Mean Well power supply series RID-125

Switching power supplies in an enclosed case with 125W, screw terminals and long life 105°C caps. These devices have a switch for selecting between 155V or 230V AC input voltage and are protected against short...

Mean Well power supply series RID-125

Switching power supplies in an enclosed case with 125W, screw terminals and long life 105°C caps. These devices have a switch for selecting between 155V or 230V AC input voltage and are protected against short circuit, overload (auto recovery) as well as overvoltage. Furthermore, they have isolated outputs. We offer the following types of this Mean Well series: RID-125-1205, RID-125-1224, RID-125-1248, RID-125-2405 and RID-125-2448.

  • dual output
  • output: 125,4 to 144W
  • input voltage: 88 to 132 / 176 to 264V AC (47 to 63Hz), 248 to 373V DC
  • maximal input inrush current: 40A
  • maximal leakage current: 2mA
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 700g
> More
Download

Showing 1 - 5 of 5 items
  • article stock price volume discount
  • Mean Well
    RID-125-1205
    31,70 €
    32375 RID-125-1205 RID-125-1205
    31,70 €
    20 pcs. / 28,10 €
    stock: 33
  • Mean Well
    RID-125-1224, Mean Well switching power supplies, 125W, dual output, isolated outputs, RID-125 series
    31,70 €
    135751 RID-125-1224 RID-125-1224
    31,70 €
    20 pcs. / 28,10 €
    stock: 7
  • Mean Well
    RID-125-1248, Mean Well switching power supplies, 125W, dual output, isolated outputs, RID-125 series
    31,70 €
    135752 RID-125-1248 RID-125-1248
    31,70 €
    20 pcs. / 28,10 €
    stock: 10
  • Mean Well
    RID-125-2405
    31,70 €
    32376 RID-125-2405 RID-125-2405
    31,70 €
    20 pcs. / 28,10 €
    stock: 49
  • Mean Well
    RID-125-2448, Mean Well switching power supplies, 125W, dual output, isolated outputs, RID-125 series
    31,70 €
    135753 RID-125-2448 RID-125-2448
    31,70 €
    20 pcs. / 28,10 €
    stock: 8
Showing 1 - 5 of 5 items
