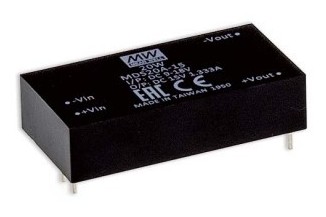

Mean Well DC/DC converter series MDS20

Converter modules in a 2x1 inch DIL housing with 20W and an input voltage ratio of 2:1. These devices have a low leakage current of less than 5µA, do not require a minimum load, are protected against overload (auto recovery) and short circuit (continuous) as well as suitable for direct PCB mounting. Furthermore, they are suitable for medical applications (2xMOPP) and comply with IEC60601-1 as well as EN55011 class A. We offer the following types of this Mean Well series: MDS20A-05, MDS20A-12, MDS20A-15, MDS20A-24, MDS20B-05, MDS20B-12, MDS20B-15, MDS20B-24, MDS20C-05, MDS20C-12, MDS20C-15 and MDS20C-24.

single output
output: 20W
output voltage tolerance: ±5%
maximal ripple and noise: 60mV_pp
withstand voltage: 4000V DC
operating temperature: -40 to +90°C
dimensions: 50,8x25,4x12mm
Gewicht: 30g
