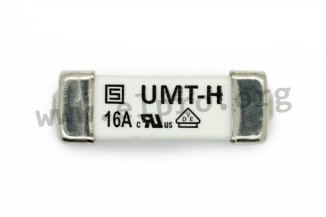

Schurter SMD fuse series UMT-H

SMD fuses in a 16x5,3mm ceramic housing with Ni/Sn coated copper terminals. These fuses are suitable for puls-shaped continuous currents as well as for direct PCB mounting. They have a time lag characteristic and a b...

Schurter SMD fuse series UMT-H

SMD fuses in a 16x5,3mm ceramic housing with Ni/Sn coated copper terminals. These fuses are suitable for puls-shaped continuous currents as well as for direct PCB mounting. They have a time lag characteristic and a breaking capacity of up to 1500A. We offer the following types of this Schurter series: 3403.0266.11, 3403.0271.11, 3403.0274.11, 3403.0277.11, 3403.0280.11, 3403.0283.11, 3403.0284.11, 3403.0286.11, 3403.0289.11, 3403.0290.11 and 3403.0291.11.

  • rated voltage: 277V AC, 250V DC
  • rated current: 0,16 to 50A
  • characteristic: time lag
  • breaking capacity: 100 to 1500A
  • operating temperature: -55 to +125°C
  • bulk
