XP Power power supply series GSP750

Switching power supplies in an enclosed case with 750W, protection class I, a universal input and a fan with an intelligent speed control (peak power: 900W/100ms). These devices are suitable for medical technolo...

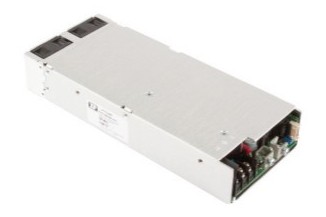

XP Power power supply series GSP750

Switching power supplies in an enclosed case with 750W, protection class I, a universal input and a fan with an intelligent speed control (peak power: 900W/100ms). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a 5V/2A standby output and comply with IEC60950-1, IEC62368-1, IEC60601-1, UL62368-1, ANSI/AAMI ES60601-1, EN62368-1, EN60601-1, EN55011 class A, EN55032 class A, EN61204-3 as well as EN60601-1-2. We offer the following types of this XP Power series: GSP750PS12-EF, GSP750PS24-EF and GSP750PS48-EF.

  • single output
  • output: 750W (900W/100ms peak power)
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • input current: 4,35A
  • maximal input inrush current: 60A
  • leakage current: 250µA
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • dimensions: 170,4x101,1x41,9mm
  • weight: 900g
> More
Data Sheet
