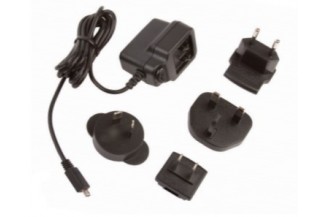

XP Power plug-in power supply series VER05

Plug-in switching power supplies with 5W, energy efficiency Level VI (EU 2019/1782), a universal input and protection class II. These devices have four interchangeable AC plugs (CN/EU/UK/US), comply with IEC60950-1, IEC62368-1, UL60950-1, EN60950-1, EN62368-1 as well as EN55032 class B and are protected against overvoltage, short circuit as well as overload. We offer the type VER05US050-JA of this XP Power series.

• single output
• output: 5W
• input voltage: 90 to 264V AC (47 to 63Hz)
• maximal input inrush current: 60A
• input current: 0,18A
• output voltage tolerance: 5%
• operating temperature: 0 to +60°C
• withstand voltage: 3000V AC
• output plug: coaxial 2,1x5,5mm
• cable length: 150cm
• dimensions: 55,1x42,9x37mm
• weight: 80g
