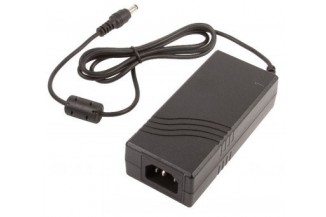

XP Power desktop power supply series VEC40

Desktop switching power supplies with 40W, a universal input, protection class I and energy efficiency Level VI (EU 2019/1872). These devices are protected against short circuit, overvoltage as well as ov...

XP Power desktop power supply series VEC40

Desktop switching power supplies with 40W, a universal input, protection class I and energy efficiency Level VI (EU 2019/1872). These devices are protected against short circuit, overvoltage as well as overload and comply with UL60950-1, UL62368-1, EN60950-1, EN62368-1, IEC60950-1, IEC62368-1 as well as EN55032 class B. We offer the following types of this XP Power series: VEC40US12 and VEC40US24.

  • single output
  • output: 40W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 110A
  • output voltage tolerance: 5%
  • input current: 0,6A
  • leakage current: 700µA
  • operating temperature: 0 to +65°C
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • input plug: C14
  • output plug: 2,5x5,5mm
  • dimensions: 116,3x52,4x31,1mm
  • weight: 240g
