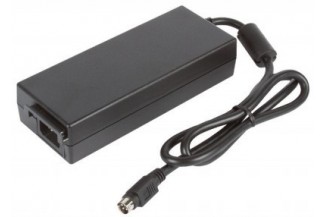

XP Power desktop power supply series ALM120

Desktop switching power supplies with 120W, a universal input, protection class I and energy efficiency Level VI (EU 2019/1872). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, short circuit as well as overvoltage. They comply with UL62368-1, EN62368-1, IEC60950-1, IEC62368-1, ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1, EN55032 class B as well as EN60601-1-2. We offer the type ALM120PS24 of this XP Power series.

• single output
• output: 120W
• input voltage: 80 to 264V AC (47 to 63Hz)
• maximal input inrush current: 120A
• output voltage tolerance: 5%
• input current: 0,6A
• leakage current: 250µA
• operating temperature: 0 to +60°C
• withstand voltage I/P-O/P: 4000V AC
• withstand voltage I/P-FG: 1500V AC
• withstand voltage O/P-FG: 500V AC
• input plug: C14
• output plug: DIN 4 Pin
• dimensions: 171x68x38mm
• weight: 500g
