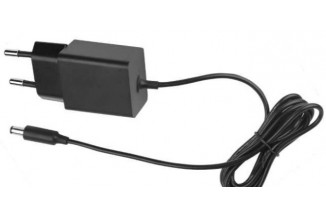

HN-Power plug-in power supply series HNP07-V2

Plug-in switching power supplies with 7,5W, a universal input, protection class II and energy efficiency Level VI (EU 2019/1782). These devices have a Europlug as well as a coaxial output plug and are ...

HN-Power plug-in power supply series HNP07-V2

Plug-in switching power supplies with 7,5W, a universal input, protection class II and energy efficiency Level VI (EU 2019/1782). These devices have a Europlug as well as a coaxial output plug and are protected against short circuit, overvoltage as well as overload. They are suitable for indoor applications and comply with EN62368-1 as well as EN55032. We offer the following types of this HN-Power series: HNP07-050V2, HNP07-090V2 and HNP07-120V2.

  • single output
  • output: 7,5W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 30A
  • input current: 0,35A
  • leakage current: 0,25mA
  • withstand voltage: 3000V AC
  • input plug: Euro
  • output plug: coaxial 2,1x5,5mm
  • cable length: 150cm
  • operating temperature: -10 to +40°C
  • dimensions: 76,4x33,7x23mm
  • weight: 60g
> More
Data Sheet
