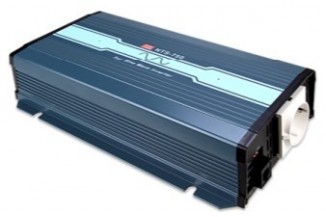

Mean Well DC/AC converter series NTS-750

Inverters with 750W, a pure sine wave output (THD<3%), a remote ON/OFF function and an automatic shutdown in case of a deeply discharged battery. These devices have an adjustable output voltage and are p...

Mean Well DC/AC converter series NTS-750

Inverters with 750W, a pure sine wave output (THD<3%), a remote ON/OFF function and an automatic shutdown in case of a deeply discharged battery. These devices have an adjustable output voltage and are protected against overvoltage, short circuit as well as overtemperature. They trigger an alarm if the battery voltage is too low and comply with IEC62368-1, EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTS-750-212EU, NTS-750-224EU and NTS-750-248EU.

  • output: 750W
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±0,1%
  • curve shape: pure sine wave (THD<3%)
  • connection type: EU type F
  • operating temperature: -20 to +70°C
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • dimensions: 270x158x67mm
  • weight: 2300g
> More
Data Sheet
