Mean Well DC/AC converter series NTS-1200

Inverters with 1200W, a pure sine wave output (THD<3%), a low battery voltage alarm function and a remote ON/OFF control. These devices have an automatic shutdown function in case of a deeply discharged...

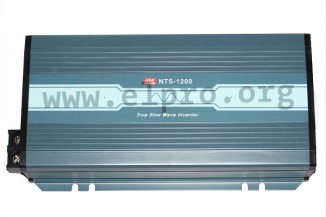

Mean Well DC/AC converter series NTS-1200

Inverters with 1200W, a pure sine wave output (THD<3%), a low battery voltage alarm function and a remote ON/OFF control. These devices have an automatic shutdown function in case of a deeply discharged battery and are protected against overvoltage, short circuit as well as overtemperature. They have an adjustable output voltage and comply with IEC62368-1, EN62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: NTS-1200-212EU, NTS-1200-224EU and NTS-1200-248EU.

  • output: 1200W
  • selectable output voltage: 200/220/230/240V AC
  • output voltage tolerance: ±3%
  • output frequency: 50/60Hz
  • output frequency tolerance: ±0,1%
  • curve shape: pure sine wave (THD<3%)
  • connection type: EU type F
  • operating temperature: -25 to +70°C
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage O/P-FG: 1500V AC
  • dimensions: 333x184x70mm
  • weight: 3300g
> More
Data Sheet
