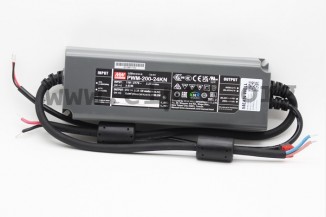

Mean Well LED driver series PWM-200KN

LED drivers in a plastic housing with 200W, protection class II and a constant voltage. These flickerfree devices have a built-in KNX interface, a PWM style output and are protected against overload, overtempe...

Mean Well LED driver series PWM-200KN

LED drivers in a plastic housing with 200W, protection class II and a constant voltage. These flickerfree devices have a built-in KNX interface, a PWM style output and are protected against overload, overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with UL8750, EN61347-1, EN61347-2-13, IEC61347-2-13 as well as EN55015. We offer the following types of this Mean Well series: PWM-200-12KN, PWM-200-24KN, PWM-200-36KN and PWM-200-48KN.

  • single output
  • output: 180 to 200,1W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • leakage current: 0,75mA
  • no-load power consumption: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +80°C
  • connection type: stranded wire
  • cable length: 30cm
  • dimensions: 195x68x39,5mm
  • weight: 1030g
> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    PWM-200-12KN, Mean Well LED drivers, 200W, KNX standard, PWM output voltage, PWM-200KN series
    64,59 €
    237719 PWM-200-12KN PWM-200-12KN
    64,59 €
    Quantity Unit price
    50 + 62,49 €
    Stock: 63
  • Mean Well
    PWM-200-24KN, Mean Well LED drivers, 200W, KNX standard, PWM output voltage, PWM-200KN series
    64,59 €
    237720 PWM-200-24KN PWM-200-24KN
    64,59 €
    Quantity Unit price
    50 + 62,49 €
    Stock: 18
  • Mean Well
    PWM-200-36KN, Mean Well LED drivers, 200W, KNX standard, PWM output voltage, PWM-200KN series
    64,59 €
    237721 PWM-200-36KN PWM-200-36KN
    64,59 €
    Quantity Unit price
    50 + 62,49 €
    Stock: 17
  • Mean Well
    PWM-200-48KN, Mean Well LED drivers, 200W, KNX standard, PWM output voltage, PWM-200KN series
    64,59 €
    237722 PWM-200-48KN PWM-200-48KN
    64,59 €
    Quantity Unit price
    50 + 62,49 €
    Stock: 39
Showing 1 - 4 of 4 products
