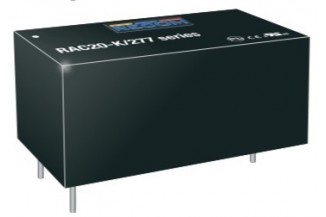

Recom AC/DC converter series RAC20-K/277

AC/DC converters in a plastic housing with 20W, a universal input, protection class II and a single (RAC20-_SK/277) or dual output (RAC20-_DK/277). These devices are suitable for PCB mounting, are protected...

Recom AC/DC converter series RAC20-K/277

AC/DC converters in a plastic housing with 20W, a universal input, protection class II and a single (RAC20-_SK/277) or dual output (RAC20-_DK/277). These devices are suitable for PCB mounting, are protected against overload, short circuit as well as overvoltage and comply with EN62368-1, EN60335-1, EN61558-1, EN61558-2-16, EN61204-3, EN55032 class B as well as EN55014. We offer the following types of this Recom series: RAC20-05SK/277, RAC20-12SK/277, RAC20-15SK/277, RAC20-24SK/277, RAC20-12DK/277 and RAC20-15DK/277.

  • single (RAC20-_SK/277) or dual output (RAC20-_DK/277)
  • output: 20W
  • input voltage: 85 to 305V AC (47 to 63Hz)
  • input current: 0,4A
  • maximal input inrush current: 40A
  • leakage current: 0,25mA
  • maximal no-load power consumption: 0,04W
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -40 to +55°C
  • dimensions: 52,5x27,4x23mm
  • weight: 60g
> More
Data Sheet
