Zettler PCB transformers

Transformers with 2VA and an EI30 core. These devices are short circuit proof and are suitable for PCB mounting. They comply with temperature resistance class Ta 70/B and have a permissible operating temperature of up to ...

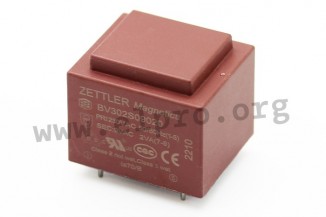

Zettler PCB transformers

Transformers with 2VA and an EI30 core. These devices are short circuit proof and are suitable for PCB mounting. They comply with temperature resistance class Ta 70/B and have a permissible operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06020, BV302S09020, BV302S12020, BV302S15020, BV302S18020 and BV302S24020.

  • core: EI 30
  • output: 2VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm
> More
