Zettler PCB transformers

Transformers with 2,8VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 40/B as well as EN61558 and EN60950. We offer the following ty...

Zettler PCB transformers

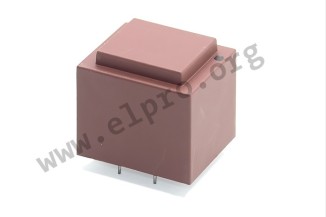

Transformers with 2,8VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 40/B as well as EN61558 and EN60950. We offer the following types of this Zettler series: BV302S06028, BV302S09028, BV302S12028, BV302S15028, BV302S18028 and BV302S24028.

  • core: EI 30
  • output: 2,8VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 40/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm
  • maximal operating temperature: 40°C
> More
Data Sheet
