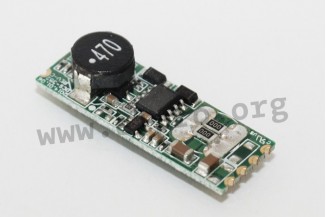

Recom DC/DC LED driver series RCD-24/PL

DC/DC step-down converters (open frame) with a constant current output, a built-in class A (RCD-24_/PL/A) resp. class B (RCD-24_/PL/B) EMC filter and a wide input as well as output voltage range. These devic...

Recom DC/DC LED driver series RCD-24/PL

DC/DC step-down converters (open frame) with a constant current output, a built-in class A (RCD-24_/PL/A) resp. class B (RCD-24_/PL/B) EMC filter and a wide input as well as output voltage range. These devices have a dimming control (digital PWM and analogue voltage dimming) and are protected against short circuit as well as overtemperature. They are suitable for LED lighting applications and EN/RAILWAYS certified. We offer the following types of this Recom series: RCD-24-0.30/PL/B, RCD-24-0.35/PL/A, RCD-24-0.35/PL/B, RCD-24-0.70/PL/A, RCD-24-0.70/PL/B and RCD-24-1.00/PL/A.

  • operating temperature 300/350mA: -40 to +85°C
  • operating temperature 500mA: -40 to +80°C
  • operating temperature 600/700mA: -40 to +75°C
  • operating temperature 1000mA: -40 to +65°C
  • dimensions: 31x11,4x6,6mm
  • weight: 1,9g
