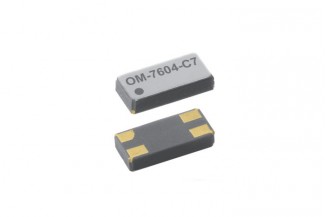

Micro Crystal SMD crystal oscillator series OM-7604-C7

  • SMD clock crystal oscillators
  • in a 3,2x1,5x0,7mm ceramic housing (CMOS/XTAL)
  • with an ageing of ±3ppm in the first year
  • frequency: 32,768kHz
  • frequency tolerance: ±20ppm
  • operating voltage: 1,2 ...

Micro Crystal SMD crystal oscillator series OM-7604-C7

  • SMD clock crystal oscillators
  • in a 3,2x1,5x0,7mm ceramic housing (CMOS/XTAL)
  • with an ageing of ±3ppm in the first year
  • frequency: 32,768kHz
  • frequency tolerance: ±20ppm
  • operating voltage: 1,2 to 5,5V
  • current consumption: 0,3/0,5µA
  • operating temperature: -40 to +85°C
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Micro Crystal
    OM-7604-C7±20 PPM TA QC, Micro Crystal clock crystal oscillators, SMD, ceramic housing, OM-7604-C7 series
    1,15 €
    131066 OM-7604-C7 OM-7604-C7±20 PPM TA QC OM-7604-C7±20 PPM TA QC
    1,15 €

    More
    Stock: 100
